                                                                                    4k Advertising mediaplayer with push buttons

Main features:

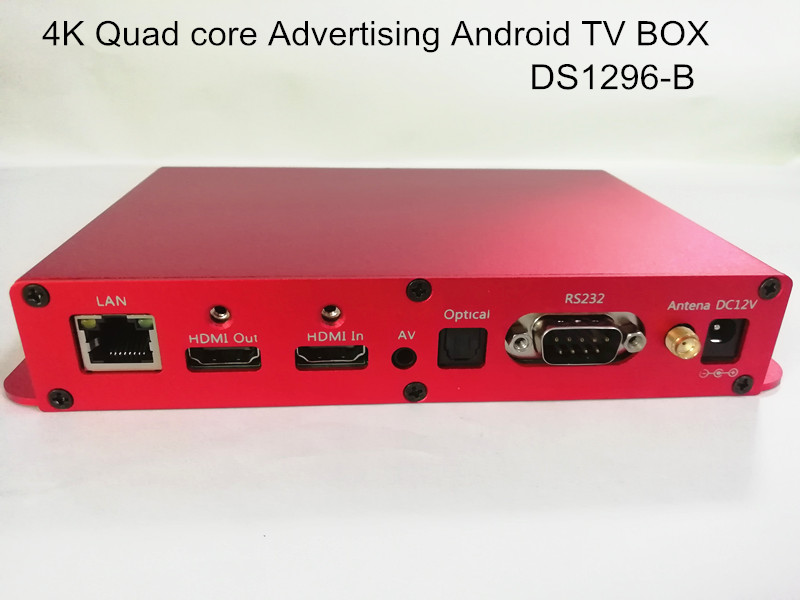

3840X2160 60HZ HDMI2.0

HDMI in and HDMI Out

RS232 ,Motion sensor,push button input.

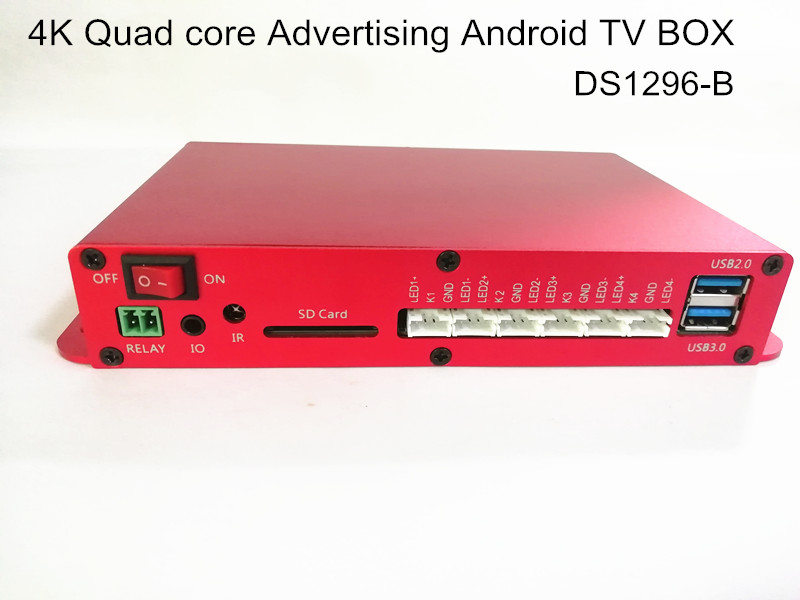

Support 4 led buttons or 8 buttons without LED(Green sockets)

Support 6 led buttons or 12 buttons without LED(white sockets)

Auto-play when power on

Button control display

RS232 control display

Motion sensor trigger display

Custom control display


Specs:

OS         Android 7.1

Language:   Multi-Language

CPU        Realtek 1296 DD ARM Cortex-A53 Quad-Core

RAM        DDR4 2GB

GPU        ARM Mali-T820MP3 (3-core)GPU-Mail-450 8 core equivalent

ROM        8 GB EMMC FLASH（OEM 32GB optional）

Resolution    4K 60HZ

Video DSP   with HW acceleration

Audio DSP   with HW acceleration

HDMI Version  2.0

HDMI input     Yes

Ethernet     1000Mbps LAN

WIFI         IEEE802.11a/b/g/n/ac, 2.4G

Antenna      Built-in antenna for WIFI

Expand Memory  SD card ( support 128GB)

Integrates  USB 2.0 High speed host/Device controller and PHY

Integrate   USB3.0/US2.0



This Ultra High Definition Media Player made of RTD1296 which is designed as a cost efficient solution.It supports Full HD
and 4K LCD screens,it is widely used in the supermarket, banks, restaurants, retail stores, hotels, museums, exhibitions, art
galleries, parks...as well as other Commercial applications, Presenting your products with images and videos in a slide show
can easily capture the attention of a target audience.

This player can auto play and loop play when power on with cables connected and SD card inserted, the player instantly plays
the content on the screen. It support 4 led buttons or 8 buttons without LED(DS1296-A).or support 6 led buttons or 12 buttons
without LED(DS1296-B).Each button can be defined as a video,music or photo,or file.so if you press any button,it will play the
files correspondingly.

Support

We mainly supply OEM& ODM service, any software function /hardware design

We do it by customers’ requirement,these products will not be shown on our website.

We also supply online technology support.

For More technical questions,welcome to contact us.thank you.
